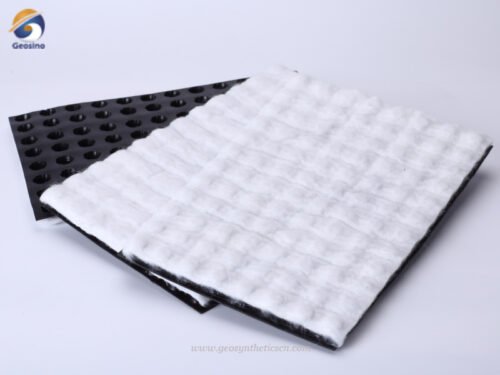

Drainage cell is made from HDPE or PP by means of heating, pressurization and molding by into a unique shape then wrapped in a filtration geotextile, which can not only create a drainage channel with certain stereo space support stiffness, but also is able to impound water. The filtration geotextile generally covers the drainage core allows unrestricted flow of moisture into the core while it restricts the passing of soil particles which may clog the core. The drainage cell is characterized with high compression strength, lightweight, corrosion protection, acid and alkali resistance, resistance to plant roots puncture, etc. It is the most advanced and versatile geo-composite product suitable for all your horizontal and vertical drainage applications such as garden, landscape, terraces, pavers, subterranean building, etc.
Drainage Cell
Description

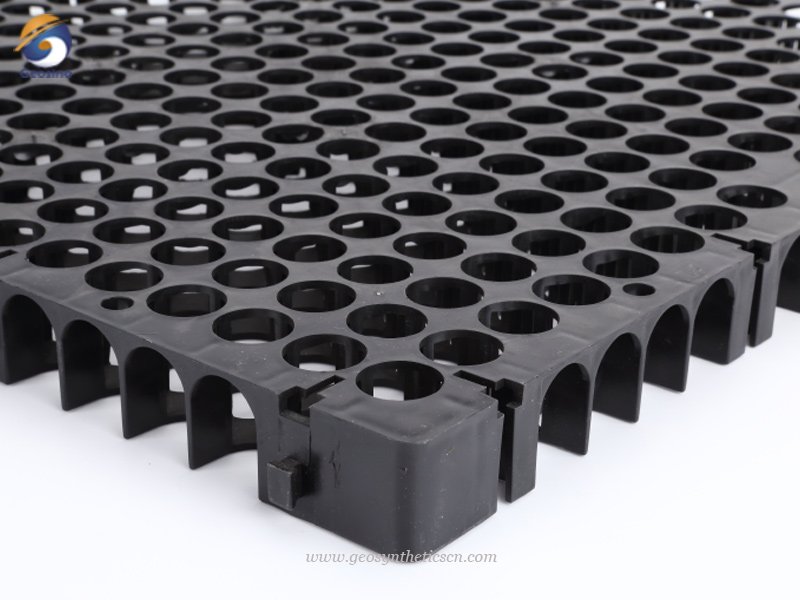

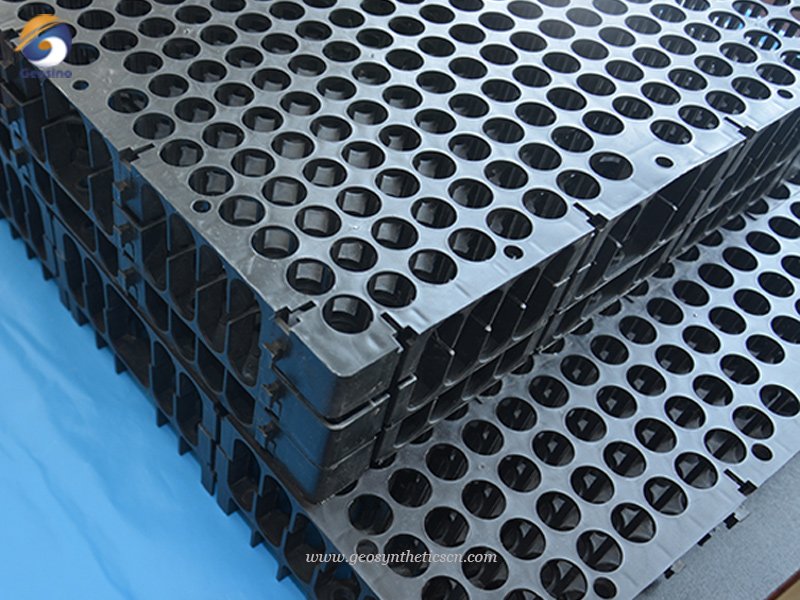

Drainage cell, also known as geocomposite cell drainage system, is the lightweight three dimensional geocomposite drainage board with flat back which is pressed against an underground structure used for subsurface water management method. This kind of drainage cell integrates the functions of storage and drainage of water. Drainage cell provides a permanent, structural and non-clogging void between the building structure and the soil profile that will not collapse or distort. The pressure of backfilled soils holds the drainage cell in place. The 30mm void enables a direct flow of water to designated outlets resulting in superior drainage efficiency compared to conventional systems. GEOSINCERE brand drainage cell is made from HDPE or PP by means of heating, pressurization and molding by into a unique shape then wrapped in a filtration geotextile, which can not only create a drainage channel with certain stereo space support stiffness, but also is able to impound water. The filtration geotextile generally covers the drainage core allows unrestricted flow of moisture into the core while it restricts the passing of soil particles which may clog the core. The drainage cell is characterized with high compression strength, lightweight, corrosion protection, acid and alkali resistance, resistance to plant roots puncture, etc. It is the most advanced and versatile geo-composite product suitable for all your horizontal and vertical drainage applications such as garden, landscape, terraces, pavers, subterranean building, etc.
Drainage Cell Specifications
| Item | Unit | BDrain-C40 | BDrain-C50 |
|---|---|---|---|
| Size | mm | 400x400x30 | 500x500x30 |
| Raw Material | Virgin HDPE | Virgin HDPE | |
| Dimple Height | mm | 30 | 30 |
| Compressive strength ≥ | kPa | 150 | 140 |
| Longitudinal flow capacity | cm3/s/cm | 25 | 25 |
| Storage capacity | l/m2 | 3.0 | 3.0 |
| Surface Void Area | >67% | >67% | |
| Internal Void Area | >95% | >95% | |
| Biological/Chemical Resistance | Unaffected by moulds and algae and good resistance to oils, acids, alkalis and bitumen | ||
| Service Tempreture | -20°C to 120°C | -20°C to 120°C | |
Drainage Cell Features
- High lateral flow capacity
- Strong load resistance and durability
- Excellent excessive water drainage ability
- Good actual void size maintenance
- Light weight to reduce deck loads
- Convenient construction, simple and economical maintenance
- Providing ideal moist and oxygen conditions for plant growth
- Reduces hydrostatic forces upon sub-grade walls
- Eco-friendly, waterproof polypropylene material
- Strong load resistance and durability
- Part of the water can be stored through the storage components
- Strong roof heat insulation and preservation
- High Compressive strength
- Thermal regulation
- Low cost
- Quick and easy to install
Drainage Cell Applications
Drainage cell is widely used such applications as roof gardens, podium landscaping, retaining walls, golf course, sports fields, bridge abutments, underground car parks, basements, under drains for slabs and foundations and subsurface drainage for permeable driveways, etc.

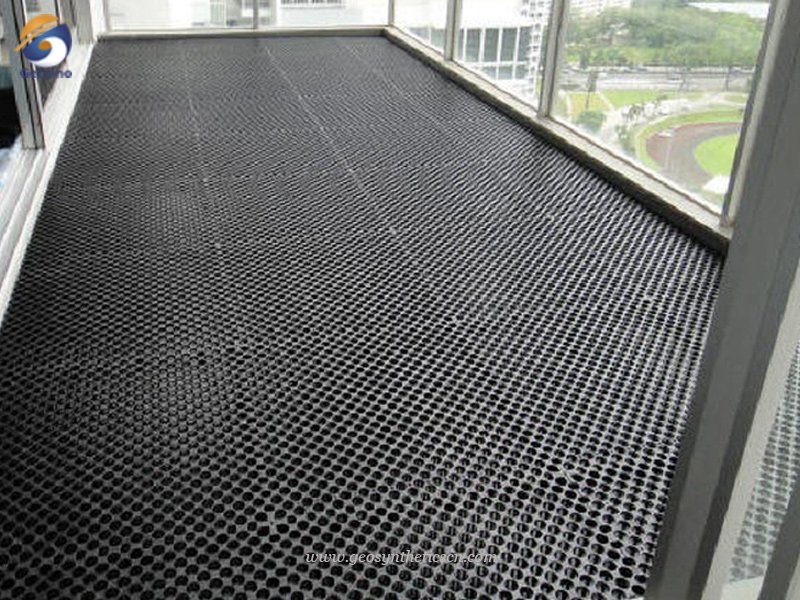

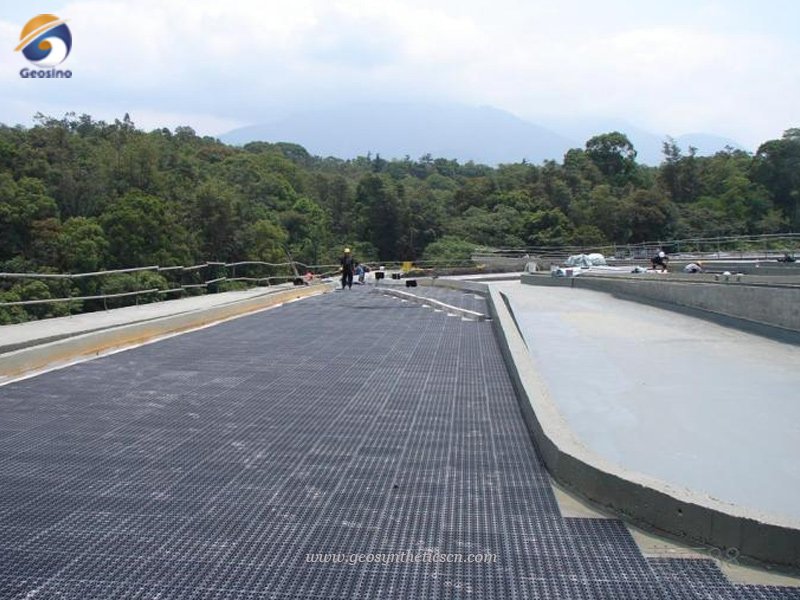

- Roof decks, odium gardens
- Landfill drains

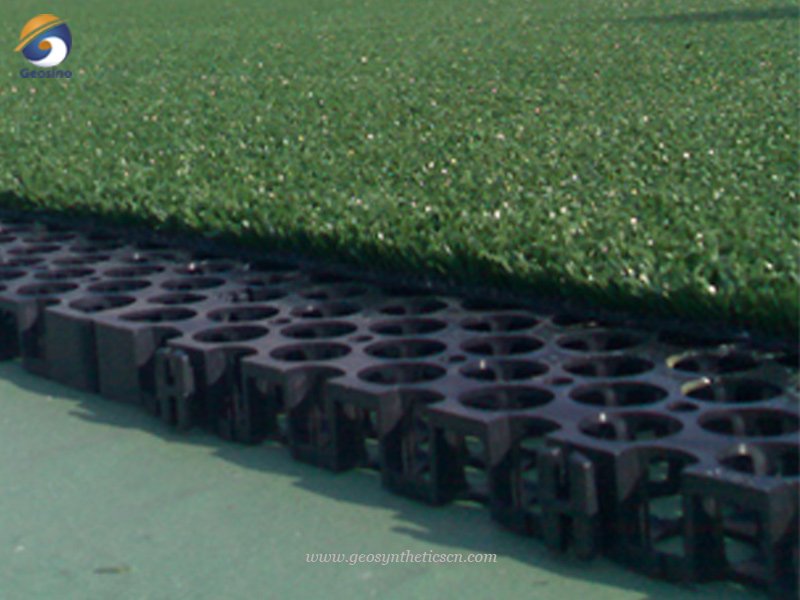

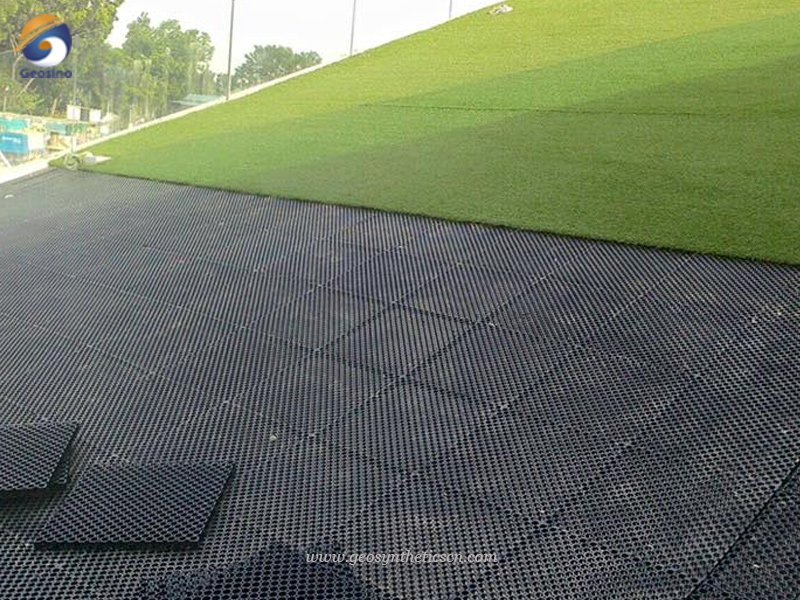

- Sports field sub-soil drainage
- Retaining walls for foundations
- Tunnels drainage
- Road and highway edge drains
- Landscape drains
- Under drain system for high ground water tables.
