What Is Geomembrane HDPE 2mm And Its Applications?

In modern engineering and environmental protection, geomembranes have become indispensable materials for containment, anti-seepage, and isolation applications. Among them, High-Density Polyethylene (HDPE) geomembranes are widely recognized for their durability, chemical resistance, and cost-effectiveness. 2mm HDPE geomembrane, in particular, offers a balance of strength and flexibility, making it suitable for diverse industrial and civil projects. This article explores the properties of Geomembrane HDPE 2mm, their key applications, and highlights the expertise of Shandong Geosino New Material Co., Ltd.—a leading innovator in geosynthetic solutions.

1. What Is Geomembrane HDPE 2mm?

HDPE geomembranes are impermeable sheets manufactured from high-density polyethylene resin. The 2mm thickness (approximately 60 mil) provides enhanced puncture resistance, tensile strength, and longevity compared to thinner variants.

1.1 Key characteristics of Geomembrane HDPE 2mm:

• Chemical Resistance: HDPE is inert to most acids, alkalis, and organic solvents, making it ideal for hazardous waste containment.
• UV Stability: Advanced carbon black additives ensure resistance to ultraviolet degradation, even in exposed environments.
• Low Permeability With a permeability coefficient of <1×10⁻¹³ cm/s, it effectively prevents fluid migration.
• Temperature Tolerance: Performs reliably in temperatures ranging from -50°C to 80°C.
• Environmental Safety: HDPE is non-toxic and recyclable, aligning with sustainable engineering practices.

The 2mm thickness is often specified for projects requiring long-term durability under heavy loads or aggressive conditions.

1.2 Technical Specifications of Geomembrane HDPE 2mm

Below are the core technical parameters of 2.0mm HDPE geomembrane, presented in a structured format to highlight performance metrics, testing standards, and manufacturing advantages:

1.2.1 Geomembrane HDPE 2mm – Base Material Properties

• Material: High-Density Polyethylene (HDPE) resin with a density range of 0.940–0.965 g/cm³.
• Thickness Tolerance: ±3%, ensuring uniform consistency across the entire roll.
• Additives: Contains 2–3% carbon black for long-term UV stabilizatio

1.2.2. Geomembrane HDPE 2mm – Mechanical Properties (ASTM Test Standards)

1.2.3. Geomembrane HDPE 2mm – Impermeability

• Permeability Coefficient: <1×10⁻¹³ cm/s (effectively impermeable).
• Seam Strength: Heat-fused seams achieve ≥90% of parent material strength (ASTM D6392).

1.2.4. Geomembrane HDPE 2mm – Environmental Adaptability

• Temperature Range: -50°C to 80°C without brittleness or softening.
• Chemical Resistance: Resists strong acids, alkalis, salts, and most organic solvents (pH 1–14).
• Aging Resistance: UV-stabilized formulation ensures ≥20-year service life in exposed conditions (ASTM D7238 accelerated aging test).

1.2.5. Geomembrane HDPE 2mm – Quality Control & Certifications

• Oxidative Induction Time (OIT): ≥100 minutes (ASTM D3895), ensuring antioxidant capacity.
• Stress Crack Resistance: ≥300 hours (ASTM D5397, Notched Constant Load Test).
• Certifications: Complies with ASTM D6392, GRI-GM13, ISO 9001, and other international standards.

1.2.6. Manufacturing Advantages (Shandong Geosino New Material Co., Ltd.)

• Advanced Production: Fully automated extrusion-calendering technology ensures uniform thickness and smooth/textured surface control.
• Customization: Rolls up to 8m wide to minimize on-site seams; options include smooth, textured, or composite surfaces.
• Strict QC: Each batch undergoes third-party laboratory testing for transparency and traceability.

The technical data above demonstrates that 2.0mm HDPE geomembrane, with its high strength, ultra-low permeability, and exceptional durability, is an optimal choice for demanding engineering projects. Shandong Geosino New Material Co., Ltd. leverages precision manufacturing and end-to-end quality control to deliver products that exceed industry standards, meeting diverse global client needs.

2. Applications of Geomembrane HDPE 2mm

The versatility of 2mm HDPE geomembranes makes them a cornerstone in multiple industries:

2.1. Geomembrane HDPE 2mm – Environmental Protection

• Landfill Liners and Caps :HDPE geomembranes act as primary or secondary liners in municipal and hazardous waste landfills, preventing leachate from contaminating groundwater. Their 2mm thickness ensures resistance to punctures from sharp debris during waste compaction.
• Wastewater Treatment Ponds: Used to line anaerobic digesters, evaporation ponds, and sludge storage facilities, these geomembranes withstand corrosive chemicals and biological agents.

2.2. Geomembrane HDPE 2mm – Water Management

• Reservoirs and Canals:  In arid regions, 2mm HDPE geomembranes reduce water loss through seepage in irrigation canals and potable water reservoirs.

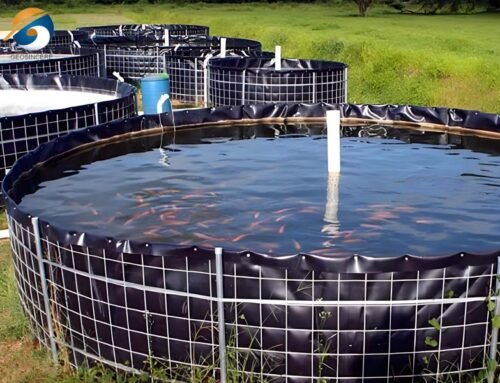

• Aquaculture Ponds: They create impermeable barriers for shrimp and fish farms, maintaining water quality and preventing saltwater intrusion.

2.3. Mining and Energy

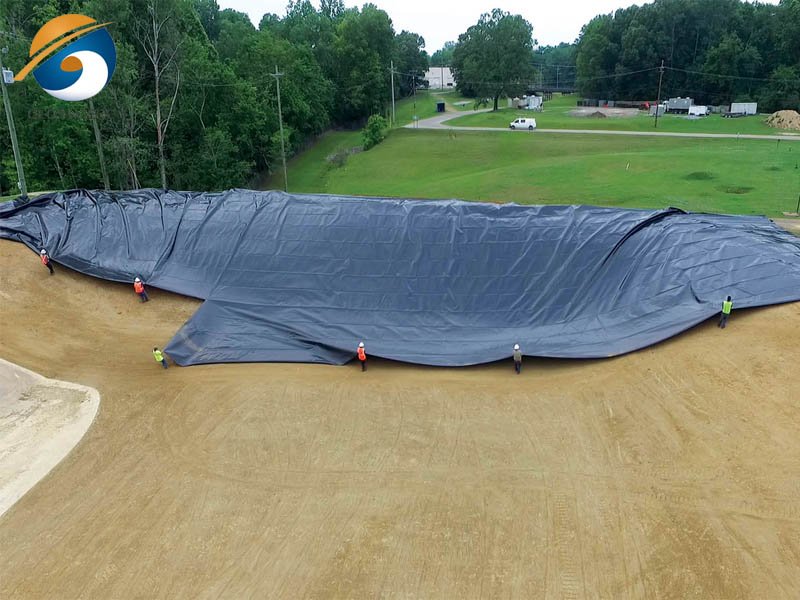

• Heap Leach Pads:  Critical in metal extraction, HDPE liners contain acidic or cyanide-based leaching solutions, ensuring environmental compliance.
• Oil and Gas Containment:  Used in secondary containment systems for fuel storage tanks and oil refineries to prevent soil and water contamination.

2.4. Agriculture

• Biogas Digesters: HDPE geomembranes seal anaerobic digesters that convert agricultural waste into renewable energy.

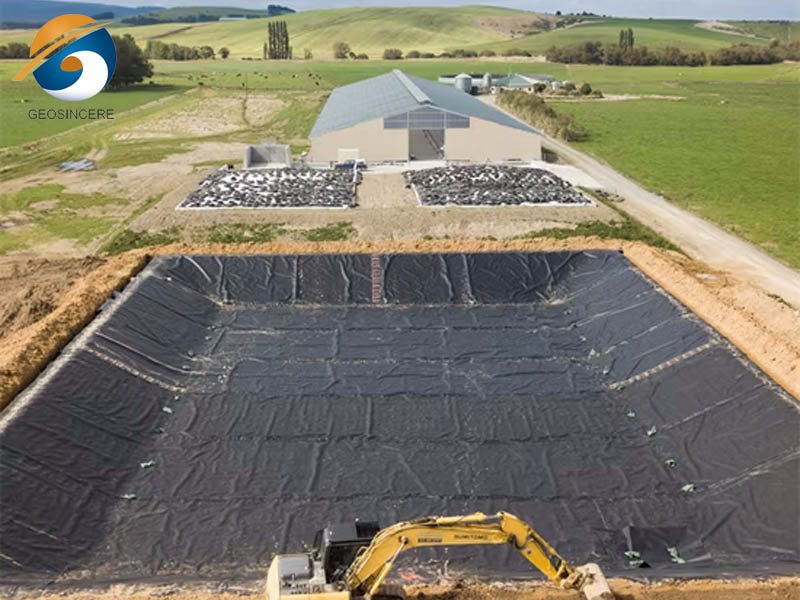

• Water Retention Pond: Farmers rely on these liners to conserve rainwater and irrigation runoff.

2.5. Civil Engineering

Tunnel and Roadbed Protection:  They prevent water infiltration in tunnels and act as moisture barriers beneath highways, extending infrastructure lifespan.

3. Why Choose US?

—Shandong Geosino New Material Co., Ltd.: Delivering Excellence in Geosynthetics

As a trusted name in geosynthetic manufacturing, Shandong Geosino New Material Co.,Ltd combines cutting-edge technology, rigorous quality control, and customer-centric innovation to provide superior HDPE geomembranes. Here’s why global clients choose us:

3.1. Advanced Manufacturing Capabilities

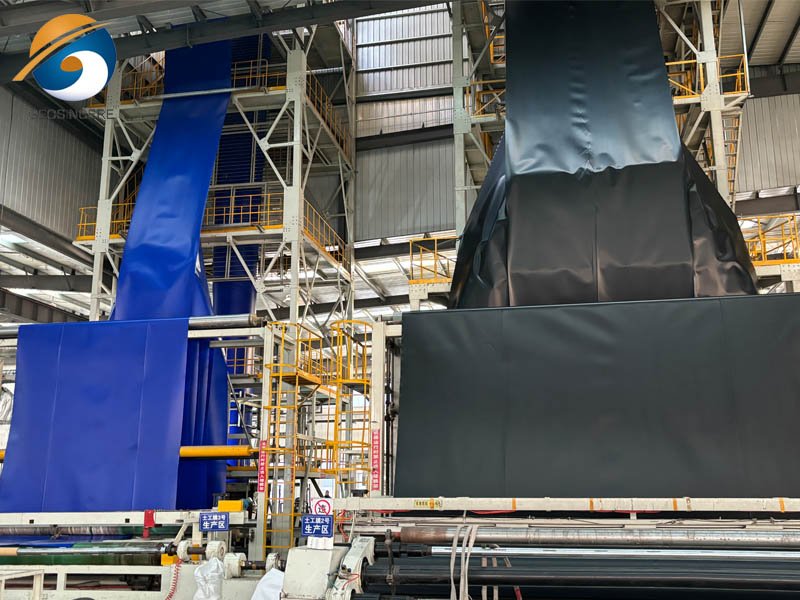

Our state-of-the-art production lines utilize fully automated extrusion and calendering processes, ensuring uniform thickness and consistency across 2mm HDPE geomembranes. With an annual output exceeding 50 million square meters, we meet large-scale project demands without compromising quality.

3.2. Compliance with International Standards

Shandong Geosino’s products adhere to ASTM, GRI-GM13, and ISO 9001 certifications. Each batch undergoes rigorous testing for tensile strength, tear resistance, and oxidative induction time (OIT) to guarantee performance in extreme conditions.

3.3. Customized Solutions

We collaborate closely with clients to tailor geomembranes to project-specific needs, including:

– Custom Sizes: Rolls up to 8m wide for reduced seams.

– Surface Textures: Smooth, textured, or co-extruded options for enhanced friction or drainage.

– Additive Packages: UV stabilizers, antimicrobial agents, or fire retardants for specialized applications.

3.4. Technical Expertise and Support

Our team of geotechnical engineers offers end-to-end support, from material selection and installation guidance to onsite welding supervision. We provide comprehensive training on ASTM-standard welding techniques to ensure seamless field deployment.

3.5. Global Project Experience

Shandong Geosino’s geomembranes have been deployed in over 30 countries across sectors:

– Landfill Projects: Partnered with municipalities in Southeast Asia for sustainable waste management.

– Mining Operations: Supplied liners for copper mines in Africa and gold mines in South America.

– Water Conservation: Supported reservoir projects in the Middle East, reducing water scarcity risks.

3.6. Commitment to Sustainability

We prioritize eco-friendly production methods, including energy-efficient manufacturing and recycling programs for scrap materials. Our HDPE geomembranes contribute to circular economy goals by extending the lifespan of containment systems.

4.Case Study: Geosino’s Geomembrane HDPE 2mm in Action

• Project: Coastal Saltwater Intrusion Prevention, Saudi Arabia
• Challenge: Protect agricultural land from saline groundwater infiltration.
• Solution: Installed a 2mm textured HDPE geomembrane as a subsurface barrier.
• Result: Reduced soil salinity by 90%, enabling crop cultivation in previously barren areas.

5.Conclusion

2mm HDPE geomembrane is a robust, adaptable solution for modern engineering challenges. Its applications span environmental protection, water conservation, mining, and beyond. WeShandong Geosino New Material Co., Ltd stands at the forefront of this industry, offering unmatched product quality, technical expertise, and a commitment to sustainability.

By choosing Geosino, clients gain not just a geomembrane supplier, but a strategic partner dedicated to solving complex containment challenges. Contact us today to explore how our 2mm HDPE geomembranes can elevate your project’s success.
